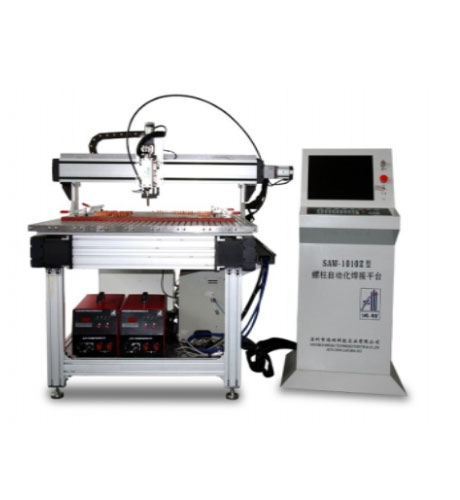

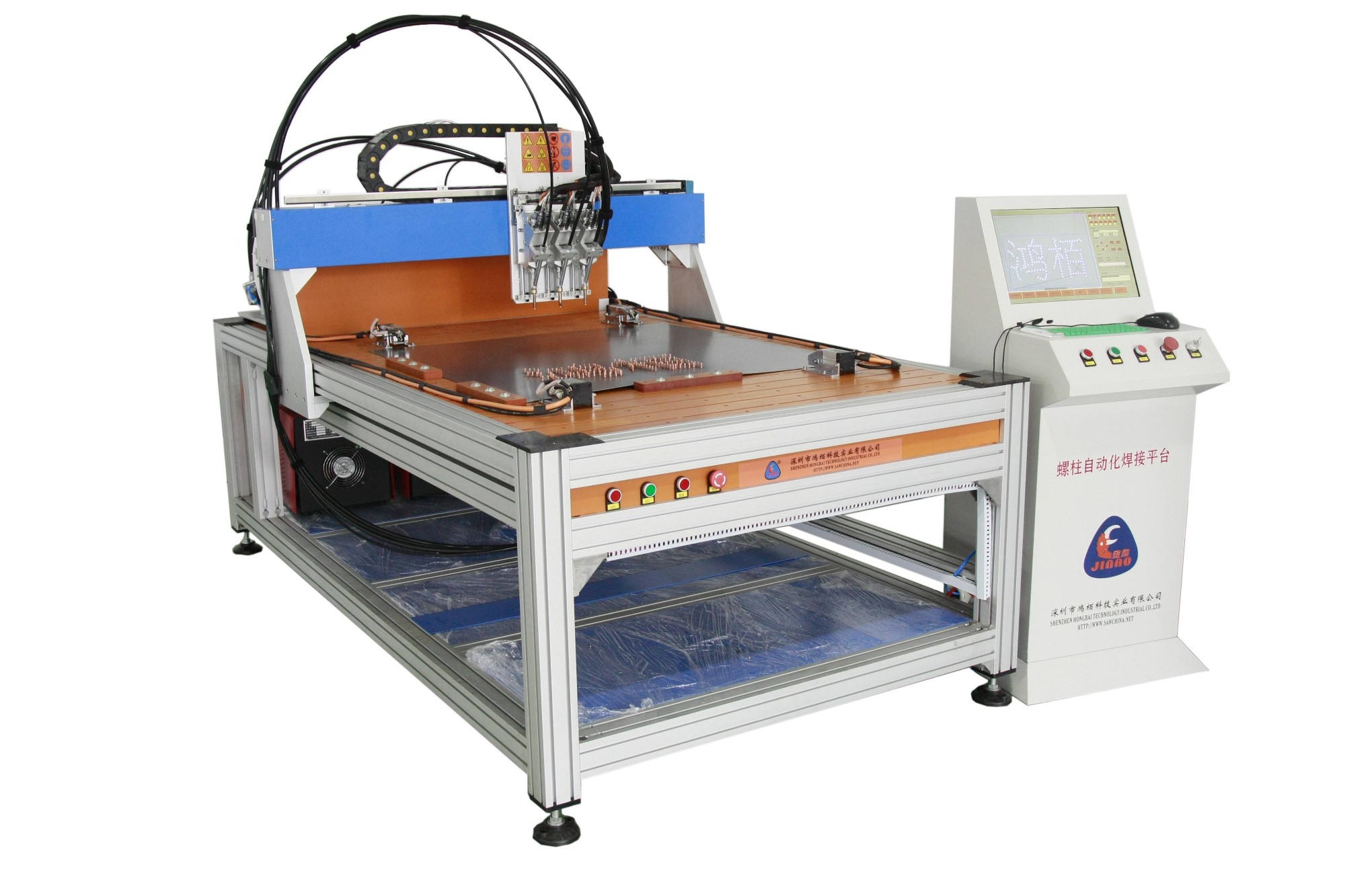

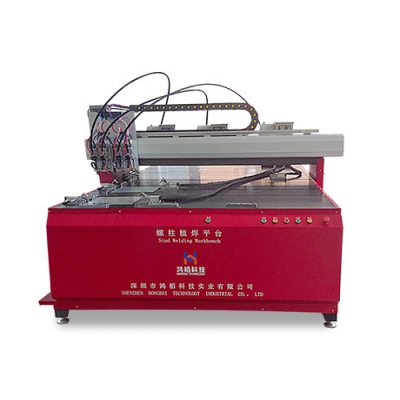

SAW -Z系列螺柱焊 接自動化平臺是一種高精度、高效率全自動數控螺柱焊接 系統。3軸傳動均采用高精度滾珠絲桿線性模組，運行穩定，定位精度高，使用壽命長；控制系統采用工業級工控電腦主板及運動控制卡，交流伺服驅動；焊機選用SAW-D型儲能焊接機（也可配SAW-3000A型DSP高頻逆變螺柱焊機 ）。Z軸由電機驅動，可配一把焊槍或多把焊槍。

SAW-Z series of stud welding automation platform is an automatic CNC Stud Welding System with high precision and high efficiency. 3-axis is driven through linear guidance with ball bearing, which ensures stable operation, high positioning accuracy ang long life of the system. the control system uses the industry-level industrial computer mainboard, motion control card and AC servo drive, while the welding machines use SAW-D capacitor discharge welding machine (also with SAW-3000A DSP-based high-frequency inverter stud welder).

Z-axis which is a motor-driven, can be equipped with one or more guns.

性能特點 Features

A、人機界面友好；

B、能將DXF文件轉換成程序文件；

C、可根據圖紙進行實時仿真模擬；

D、可對運行速度及時間進行監測控制；

E、可對運行速度和循環時間進行調節；

F、可自動檢測焊釘是否輸送到位；

G、平臺大小可根據客戶需求定制；

H、可為客戶定做各類工裝夾具。

A. User-friendly interface

B. DXF files converter to programming files

C. Real-time simulation according to the drawings

D. Monitoring and display of the motion speed and time-

E. Regulation of the motion speed and cycle time accord

F. Monitoring of stud transport(aut. program stop, if stud

stud is missing)

G. The size can be customized

H. Can order various fixtures
