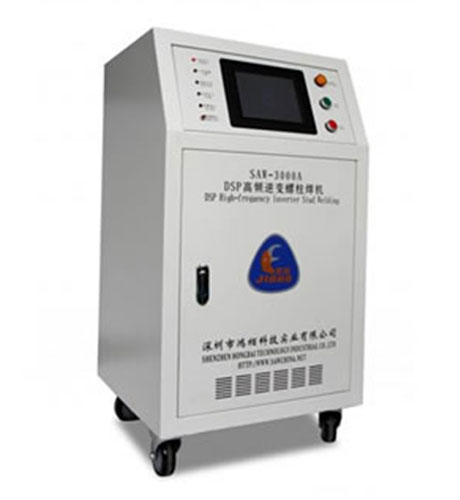

該成套設備主機采用IGBT逆變節能技術和DSP全數字控制技術，自帶5個 焊槍接口，可實現手動裝釘、人工焊接；自動裝釘、人工焊接和與 機器人 連接的全自動焊接。
該設備的最大焊接電流可達1500A。
The welding system applies IGBT inverter technolog and DSP control technology, and have the capacity carrying 5 welding can be achieved,when the system docks with robots under auto-feeding.
Max. welding current can reach 1500A.
主機主要技術性能 TECHNICAL DATA
A、電路拓?fù)洌喝珮蛉ㄕ?/p>
B、電流控制技術：恒流PWM
C、功率開關：IGBT
D、功率變壓器：鐵氧體
E、監控接口：光電隔離
F、系統控制：DSP數字處理器
G、操作控制：觸摸屏
H、屏幕顯示：中/英文
I、網絡拓?fù)洌篟S 485實時半雙以太網及CAN總線
J、硬件抗干擾:隔離供電，信號光電隔離
K、軟件抗干擾：分布式WatchDog跑飛復位。回傳校驗，
在線空閑自檢，主動休眠回避
L、監測系統：實時工況及故障監測
M、質量保證：焊接質量監測及優化
A. Circuit topology: Full Wave Bridge Rectification
B. Current control technology: PWM
C. Power switch: IGBT
D. Power transformer: ferrite
E. Interface monitoring: optoelectronic isolation
F. System Control: Microprocessor
G. User interface: Touch screen
H. Language: Chinese/English
I. Network topology: Real-time half-DUPLEX RS 工 , 485
J. Hardware Anti-interference: isolated power supply
K. Software Anti-interference: Distributed Watchdog,
error return and check, hiccup reset
L. Monitoring system: real-time working condition and fault detection
M.Quality assurance: monitoring and optimization of welding quality
主機總體性能指標 OVERALL TECHNICAL DATA
輸入 Input voltage | 3×380V, 50Hz | 輸出 Max.KVA ransge | In:100~1500A |
引弧電流可調范圍IP Arc initiation current | 20~100A | 焊接時間可調范圍TW Welding time | 6~100ms |
引弧時間可調范圍IP Arc initiation time | 10~100ms | 電流允差 △I | △I：10A |
允許網壓范圍 Input voltage tolerance | 380VAC±10% | 最大輸出功率 Max.KVA ransge | 90KVA |
每分鐘可焊次數 Welding rate | n: 30~60 (I=1500A, t=30ms) |
螺柱直徑 Welding stud Range | Φ:3~10mm | 裝釘時間 Stud fixing time | 50~2000ms |
送料時間 Feeding time | 50~2000ms | 延遲時間 Lag time | 50~500ms |
焊釘下落時間 Stud falling time | 0~50ms | 配套能力 Supporting capacity | 5個焊槍接口，一個程控或群控 RS485接口及以太網 |
